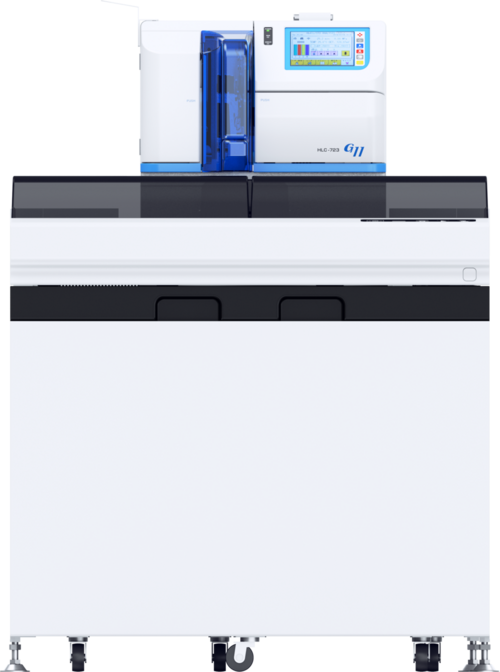

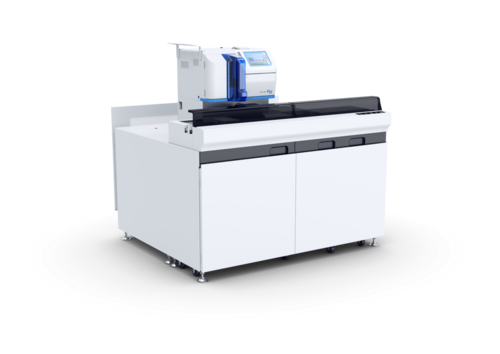

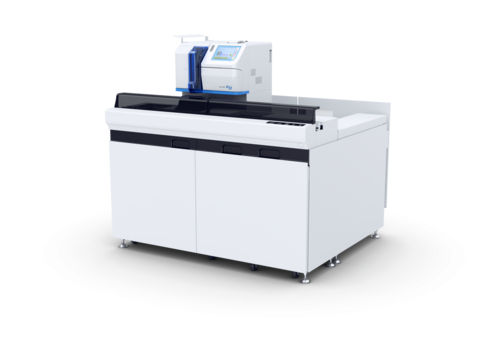

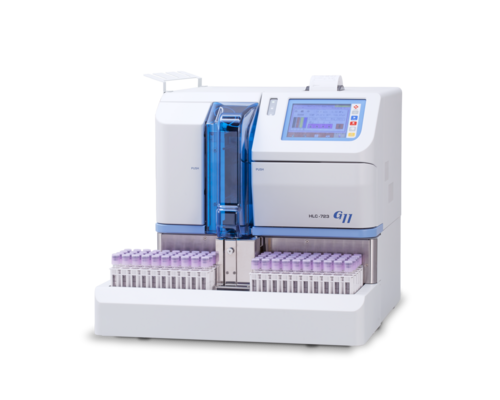

Tosoh HLC-723 G11
Tosoh Automated Glycohemoglobin Analyzer
- Ideal for high throughput laboratories
- Direct determination of stable HbA1c with less than 1% CV
- 60 seconds analysis time per sample with variant detection
- Automated warming-up, stop and wash features
- High-resolution chromatograms and excellent separation
The Tosoh HLC-723 G11® Analyser is the high-performance HPLC analyser within the Tosoh family. It has been specifically designed to cater to the ever-increasing number of HbA1c requests and a general need to optimise laboratory workflows. The Tosoh G11 analyser is a fast, precise, and user-friendly instrument.
With the Tosoh G11, there are three different analysis modes available. The standard mode delivers the HbA1c concentration, the variant mode provides a corrected HbA1c result in the presence of haemoglobinopathies and haemoglobin variants, and the β-Thalassaemia mode determines haemoglobin F(HbF) and haemoglobin A2 (HbA2) in whole blood samples to aid in the diagnosis of β-Thalassaemia.
Using the HPLC technology, the Tosoh G11 analyser displays the actual status of the patient’s blood sample and its haemoglobin fractions, providing clinicians with the foundation to make appropriate clinical decisions, and adjust therapy for better patient care.

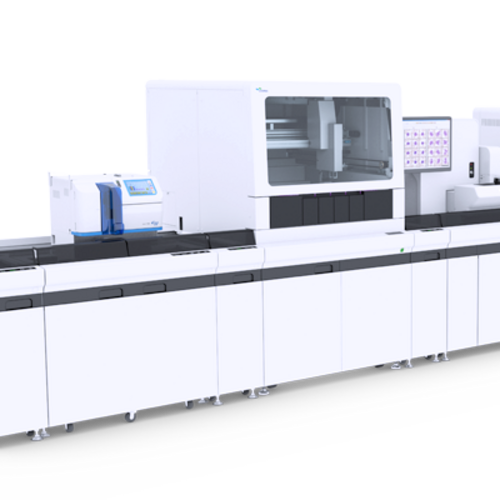

Optimise your workflow through integration with the Sysmex XN-Series
Integrating the Tosoh G11 with the Sysmex XN-Series further optimises the HbA1c analysis workflow by consolidating all analyses on the EDTA tubes and ensuring data management via the Extended IPU. The modularity and scalability allow you to multiply your automated HbA1c processing capacity by integrating up to six Tosoh G11 analysers, all depending on your requirements.
Using the HPLC technique, the Tosoh analysers provide real haemoglobin fraction separation, high-resolution chromatograms, and complete haemoglobin profile information for reliable HbA1c results.
| Measurement principle | High-performance liquid chromatography (HPLC) |
| Analysis parameter | Standard mode(Will be available in a later stage with regards to XN-9100 integration) : Separation of A1a, A1b, F, lA1c, sA1c, A0 Variant mode: Separation of A1a, A1b, F, lA1c, sA1c, A0. Corrected HbA1c result, in the presence of some Hb variants. |
| Aspiration volume | 3 μL whole blood |
| Throughput | Standard mode (Will be available in a later stage with regards to XN-9100 integration) : 30 seconds per sample, 120 samples / h Variant mode: 60 seconds per sample, 60 samples / h |
Sysmex Nordic ApS Suomen sivuliike
KPY Novapolis
Microkatu 1
70210 Kuopio
Finland
+358 102999940
Webinar: Tosoh G11 chromatogram interpretation
The diagnosis and monitoring of diabetes greatly rely on the essential parameter known as HbA1c. The Tosoh G11 analyser utilises the HPLC method to deliver dependable HbA1c results, offering high-resolution chromatograms and efficient separation of haemoglobin fractions.
This training is designed to equip you with valuable insights into the Tosoh Glycohemoglobin Analyser G11 and its potential impact on HbA1c determination. Focusing on the G11 analyser, interpretation of chromatograms, and HbA1c results, this training aims to provide you with practical tools to enhance your daily routine work.
