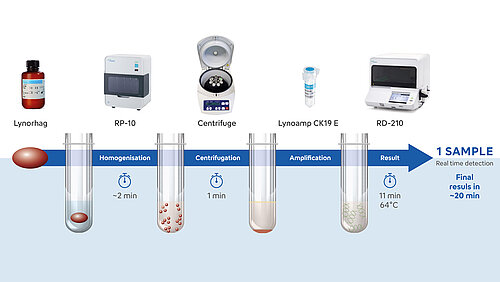

OSNA – One Step Nucleic Acid Amplification – is an automated rapid molecular diagnostic test for the detection of lymph node (LN) metastases. It analyses the entire LN tissue using a reverse transcriptase loop-mediated isothermal amplification reaction (RT-LAMP*) to quantify tumour-specific cytokeratin 19 (CK19) mRNA expression in LNs.

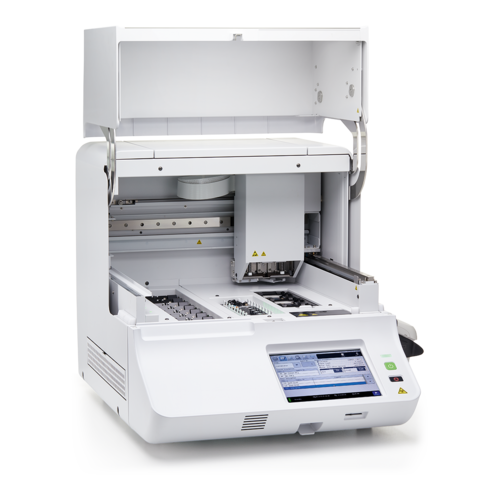

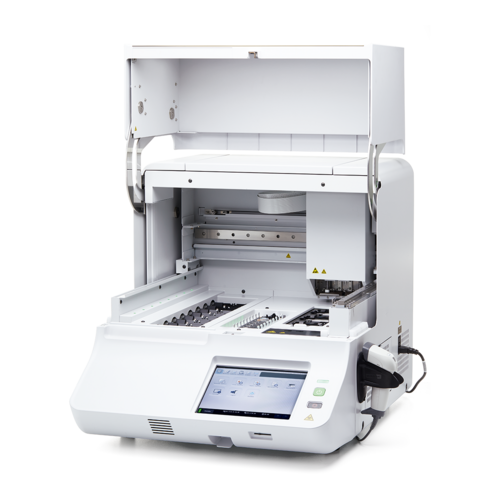

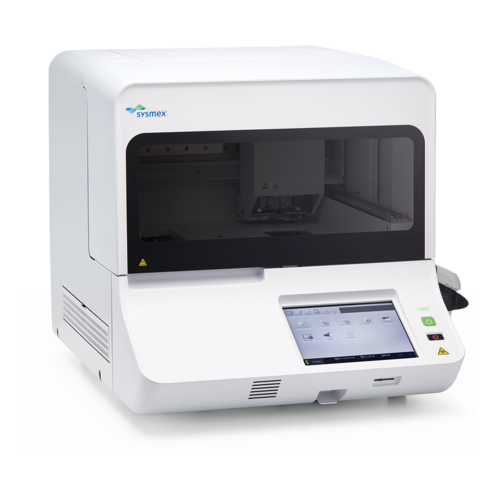

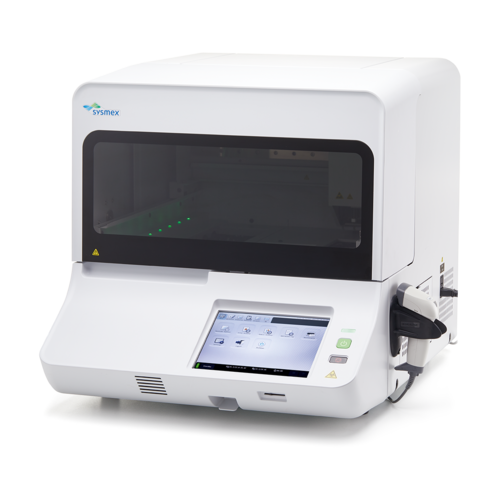

The analyser to perform OSNA is a compact device, the RD-210. It is an easy to handle smooth process demanding few resources. Lymph node tissue from different patients or cancer types can be processed simultaneously, delivering results of up to 14 lymph nodes in a single run. If needed, it can provide quick results in an intraoperative setting.

Features

DETECTION CELL (cat #05437818) is an accessory for the OSNA automated molecular diagnostic test. It is composed of minute reaction chambers where nucleic acid amplification takes place.

PIPETTE TIP (cat #05437711) is an accessory to the OSNA automated molecular diagnostic test. Composed of volumetric filtered pipette tips for the automatic liquid handling of minute volumes of reagents and samples inside the RD-210.

RD Sample Vial (cat #BP675300) is an accessory to the OSNA automated molecular diagnostic test. Composed of 1.5 mL polypropylene vials for temporary sample storage.

Technical Specifications

Article number	CP437283
Measurement Principle	In the presence of CK19 RNA, Magnesium pyrophosphate precipitates during the amplification process, causing a white turbidity. The instrument measures the amount of light transmitted through the sample and calculates the copy number.
Technology	RT-LAMP = Reverse transcriptase loop-mediated isothermal amplification; licensed under the agreement with Eiken Chemical CO., LTD
Throughput	2 sample analysis/run: within 16 min. 12 sec. 4 sample analysis/run: within 18 min. 30 sec. 14 sample analysis/run: within 29 min. 30 sec. * Includes control analysis
Dimension	W600 mm x D780 mm x H610 mm
Weight	~ 90 kg
Reagents	LYNOAMP CK19 E LYNORHAG
Disposables	DETECTION CELL PIPETTE TIP RD Sample Vial
Parameter	CK19 mRNA copies/µl
